Modified Bitumen Waterproofing Membrane for Roads & Bridges

Product Overview

The Modified Bitumen Waterproofing Membrane for Roads & Bridges is a premium waterproofing solution specifically engineered for transportation and infrastructure projects. Manufactured using high-quality SBS (Styrene-Butadiene-Styrene) elastomers or APP/APAO modified bitumen, reinforced with durable polyester fabric, the membrane provides exceptional waterproofing performance, flexibility, and long-term durability.


For railway bridges, culverts, and heavy-duty infrastructure applications, the membrane utilizes high-performance polymer-modified bitumen combined with long-fiber polyester reinforcement to ensure superior resistance to water penetration, traffic loads, and environmental stress.

Key Features



  • Excellent waterproofing and impermeability performance
  • Superior heat resistance and high-temperature stability
  • Outstanding low-temperature flexibility and crack resistance
  • High tensile strength and elongation
  • Strong adhesion to concrete and asphalt surfaces
  • Exceptional resistance to puncture, impact, and mechanical damage
  • Resistant to acids, alkalis, salts, and freeze-thaw cycles
  • No blistering or delamination under repeated traffic loads
  • Excellent aging, weathering, and durability performance
  • Designed for long-term protection of critical infrastructure

Applications


  Ideal for waterproofing and protection of:


  • Highway Bridge Decks
  • Railway Bridges and Viaducts
  • Tunnels and Underground Structures
  • Culverts and Transportation Infrastructure
  • Asphalt and Concrete Pavement Systems
  • Road Rehabilitation and Maintenance Projects


Particularly suitable for projects requiring high elongation, excellent crack-bridging performance, and superior low-temperature flexibility.

Installation Highlights



  • Self-Adhesive Membranes (Z)
  • Hot-Melt Applied Membranes (R)
  • Hot-Melt Adhesive Applied      Membranes (J)

Membrane Categories

Available Thicknesses

Membrane Categories



  • SBS Modified Bitumen      Waterproofing Membrane
  • APP Modified Bitumen      Waterproofing Membrane
  • Self-Adhesive Polymer Modified      Bitumen Waterproofing Membrane

Surface Finishes

Available Thicknesses

Membrane Categories



  • Fine Sand (S)
  • Polyethylene Film (PE)
  • Mineral Granules

Available Thicknesses

Available Thicknesses

Why Choose Our Road & Bridge Membranes?



  • 2.5 mm
  • 3.0 mm
  • 3.5 mm
  • 4.0 mm
  • 4.5 mm

Why Choose Our Road & Bridge Membranes?

Why Choose Our Road & Bridge Membranes?

Why Choose Our Road & Bridge Membranes?

  Our advanced waterproofing systems are designed to protect critical infrastructure from water damage, corrosion, and structural deterioration. By providing long-lasting waterproof protection and superior mechanical performance, they help extend the service life of bridges, roads, tunnels, and transportation structures while reducing maintenance costs.

Quality Standard

Why Choose Our Road & Bridge Membranes?

Quality Standard

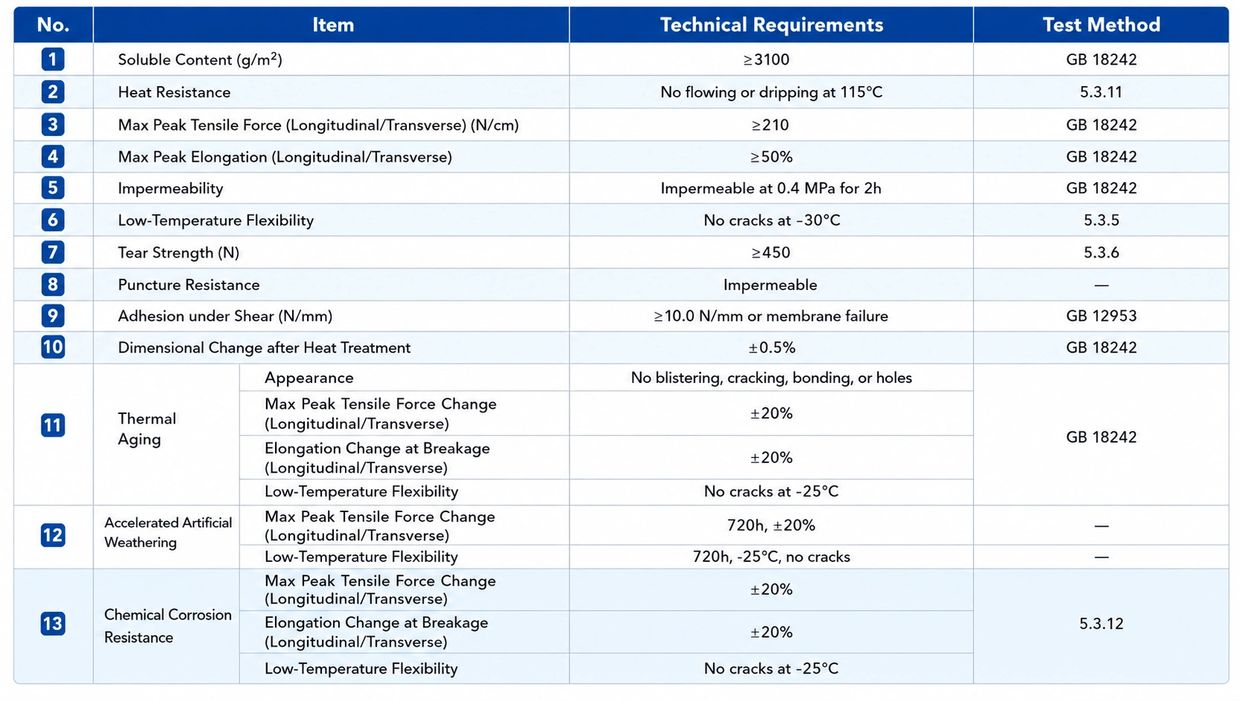

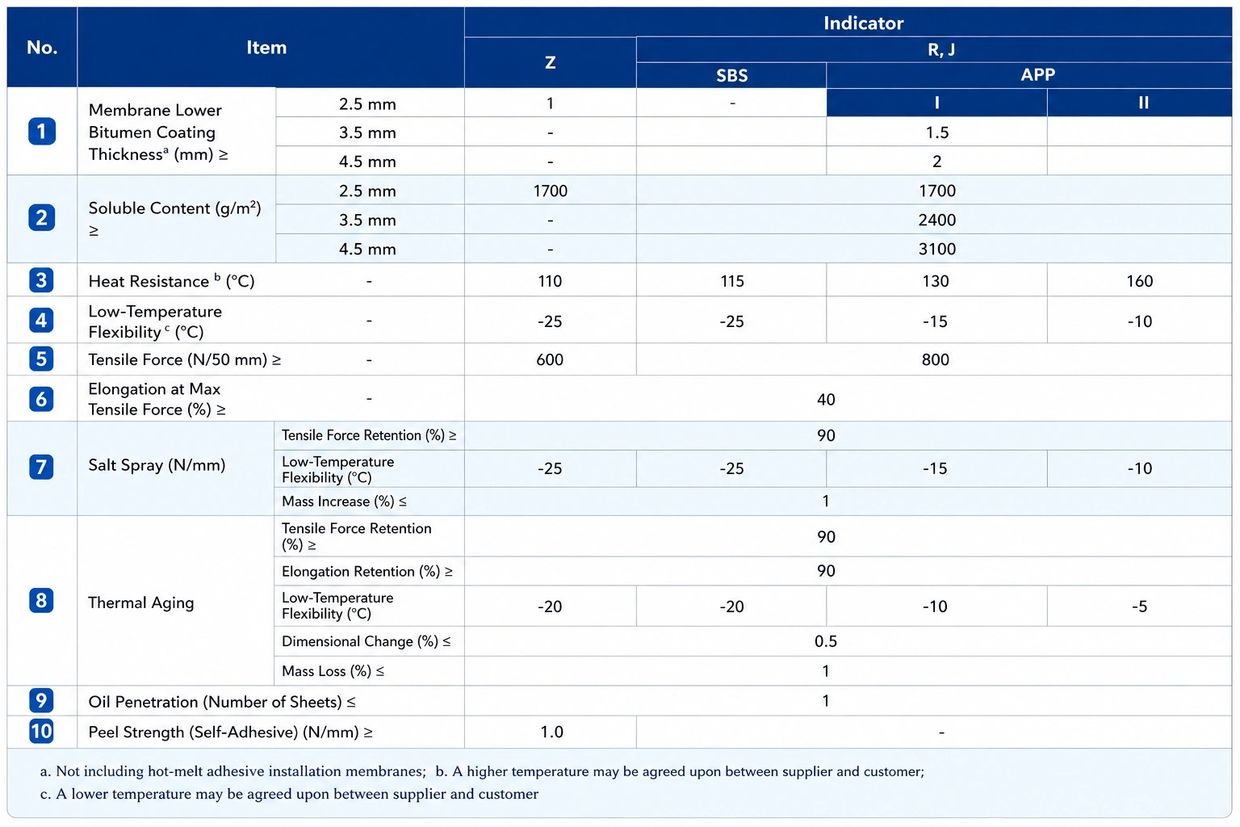

Manufactured in accordance with JC/T 974-2005 – Modified Bitumen Waterproofing Membrane for Roads & Bridges, ensuring consistent quality, reliability, and performance for demanding engineering applications.
